  • S-45C 열처리연마봉 /열처리도금봉

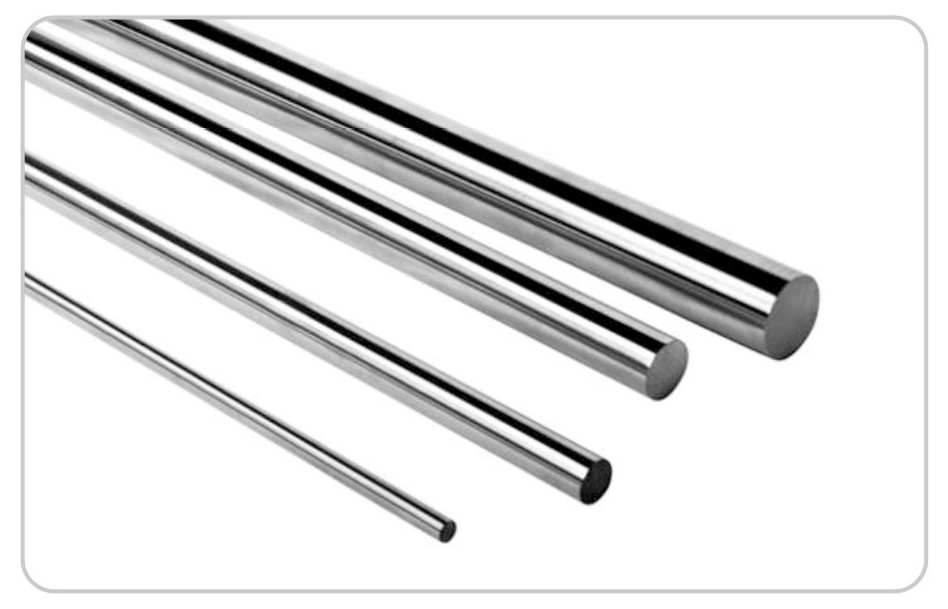

S-45C 열처리 연마봉/도금봉

  ㆍ재질 (Material) : S45C      ㆍ열처리두께(Heat-treatment thickness) : ≤ 1.5mm
  ㆍ경도 (Hardness) : HRC55이상(over)      ㆍ조도(Surface roughness) : ≤ 1.2S
  ㆍ고주파열처리 (High-frequency quenching)      ㆍ충격공차(D. tolerance) : g6
  ㆍ생산규격(Standard dimensions) : 2m, 3m

Size (mm)

17 Ø 38 Ø
5 Ø 18 Ø 40 Ø
6 Ø 19 Ø 45 Ø
7 Ø 20 Ø 50 Ø
8 Ø 22 Ø 55 Ø
9 Ø 24 Ø 60 Ø
10 Ø 25 Ø 65 Ø
11 Ø 25.4 Ø 70 Ø
12 Ø 26 Ø 75 Ø
13 Ø 28 Ø 80 Ø
14 Ø 30 Ø 85 Ø
15 Ø 32 Ø 90 Ø
16 Ø 35 Ø 100 Ø
ㆍ규격외 주문에 의함 (see standard dim. In stock other grades on request)
ㆍ주문사이즈 제작가능 (Production of ordered size available)
