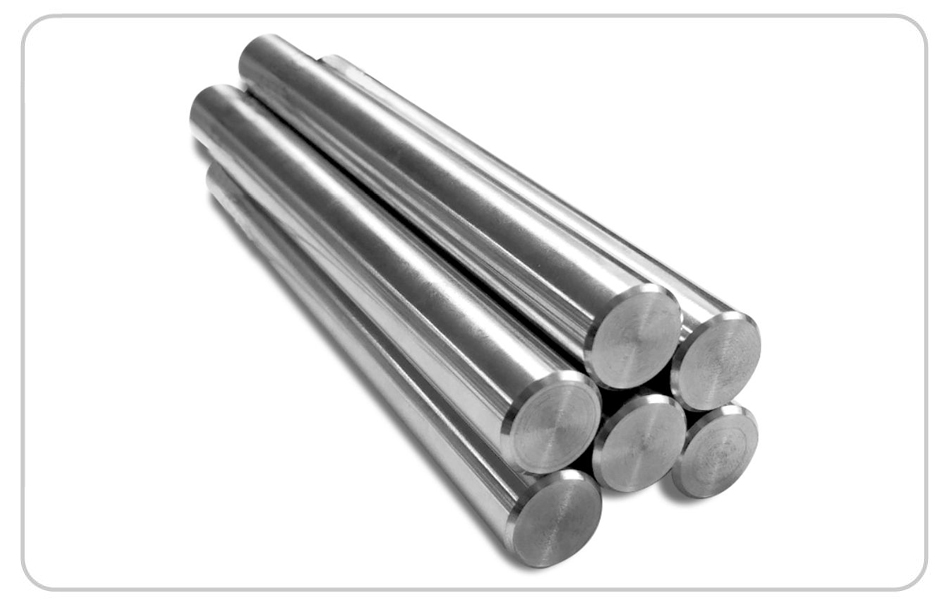

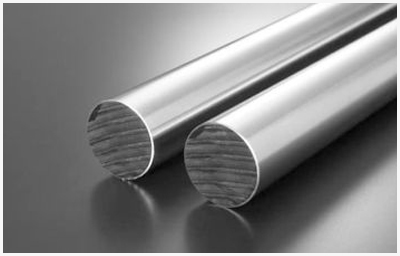

SUJ-2 (베아링강)연마봉 /도금봉

  ㆍ재질 (Material) : SUJ2      ㆍ열처리두께(Heat-treatment thickness) : ≤ 1.5mm
  ㆍ경도 (Hardness) : SUJ2 62이상      ㆍ조도(Surface roughness) : ≤ 1.2S
  ㆍ고주파열처리 (High-frequency quenching)      ㆍ충격공차(D. tolerance) : g6
  ㆍ생산규격(Standard dimensions) : 0.015~0.025

Size   [ LENGTH(m/m) ]

5 Ø 500
6 Ø 500
8 Ø 1,000
10 Ø 1,000
12 Ø 1,000
13 Ø 1,000
15 Ø 1,000 1,200 1,500 2,000
16 Ø 1,000 1,200 1,500 2,000
20 Ø 1,000 1,200 1,500 2,000
25 Ø 1,000 1,200 1,500 2,000
30 Ø 1,000 1,200 1,500 2,000
35 Ø 1,000 1,200 1,500 2,000
40 Ø 1,000 1,200 1,500 2,000
50 Ø 1,000 1,200 1,500 2,000
60 Ø 1,000 1,200 1,500 2,000
ㆍ규격외 주문에 의함 (see standard dim. In stock other grades on request)
ㆍ주문사이즈 제작가능 (Production of ordered size available)

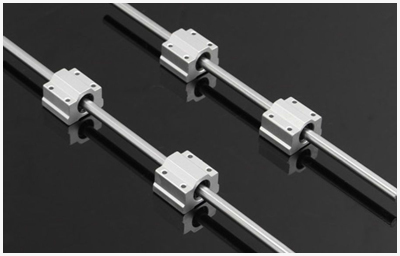

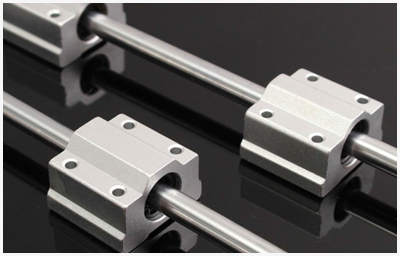

ㆍ슬라이드 샤프트(SLIDE SHAFT)의 표준재고 사양


호칭형번
Model		 지름(mm)
Diameter(mm)		 길이(mm)
Length(mm)		 중량(Kg/m)
Weight(Kg/m)		 외경허용차
Tolerance of
external diameter
SWSF6 6 510 0.23 -4 ~ -12
SWSF8 8 510 0.40 -5 ~ -14
SWSF10 10 1,010 0.62 -5 ~ -14
SWSF12 12 1,010 0.89 -6 ~ -17
SWSF13 13 1,010 1.04 -6 ~ -17
SWSF16 16 1,010 1.58 -6 ~ -17
SWSF20 20 1,010
1,510
2,010		 2.47 -7 ~ -20
SWSF25 25 1,010
1,510
2,010		 3.85 -7 ~ -20
SWSF30 30 1,010
1,510
2,010		 5.55 -7 ~ -20
SWSF35 35 1,010
1,510
2,010		 7.55 -9 ~ -25
SWSF40 40 1,010
1,510
2,010		 9.87 -9 ~ -25
SWSF50 50 1,010
1,510
2,010
3,000		 15.40 -9 ~ -25
SWSF60 60 1,010
2,000
3,000		 22.20 -10 ~ -29
